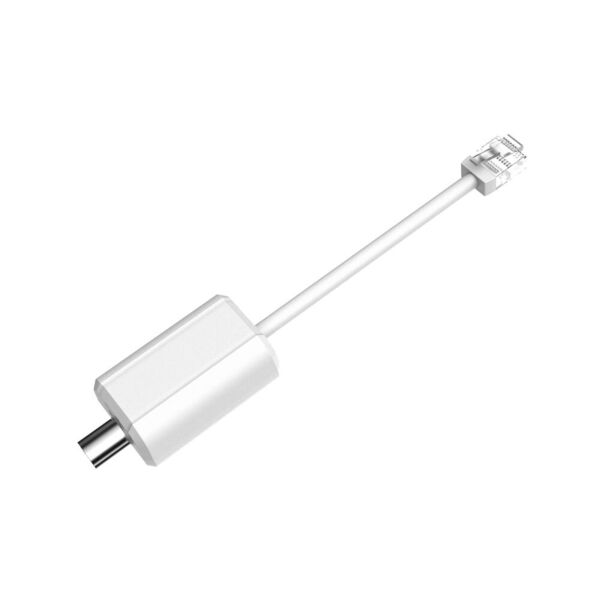

LR1002 EoC Passive Converter

Introducing the Dahua LR1002, a high-performance Ethernet over Coaxial Converter designed to provide reliable and efficient data transmission over long distances. Equipped with one RJ45 port and one BNC port, this converter supports 10/100 Mbps Base-TX transmission and can transmit data up to 400 meters (1312 ft) at 100 Mbps and 1000 meters (3280 ft) at 10 Mbps using RG59 coaxial cable. With a power consumption of less than 1 W, the Dahua LR1002 is an energy-efficient solution that can be powered by an ePoE Switch or ePoE NVR using PoE protocol. It complies with IEEE802.3 and IEEE802.3u network standards, ensuring seamless integration with your existing network infrastructure. Built to withstand harsh environmental conditions, the Dahua LR1002 operates in temperatures ranging from -40 °C to 60 °C (-40 °F to 158 °F) and can withstand humidity levels of up to 95%. It also features lightning protection with common mode and differential mode ratings of 6 KV and 2 KV, respectively. Compact and lightweight, the Dahua LR1002 measures 56.0 mm x 27.0 mm x 21.0 mm (2.20 in. x 1.06 in. x 0.83 in.) and weighs only 0.283 kg (0.62 lb). Please note that these converters are sold in pairs only and not as individual units, so you will receive two units. Depending on your system, the LR1002-1EC or LR1002-1ET may also be required. Please refer to the attached ePoE Configuration Guide image for more information. Choose the Dahua LR1002 for reliable and efficient Ethernet over Coaxial conversion.
